Figure 8 Fiber Optic Cable
- Figure 8 Fiber Optic Cable is one of the most practical solutions for aerial fiber deployment. With its integrated messenger wire, strong mechanical performance, simple installation, and cost advantages, it remains a popular choice for FTTH networks, rural broadband projects, and telecom access systems.
- For customers looking for an economical and reliable outdoor fiber solution, Figure 8 cable provides an excellent balance between performance, installation efficiency, and project cost.

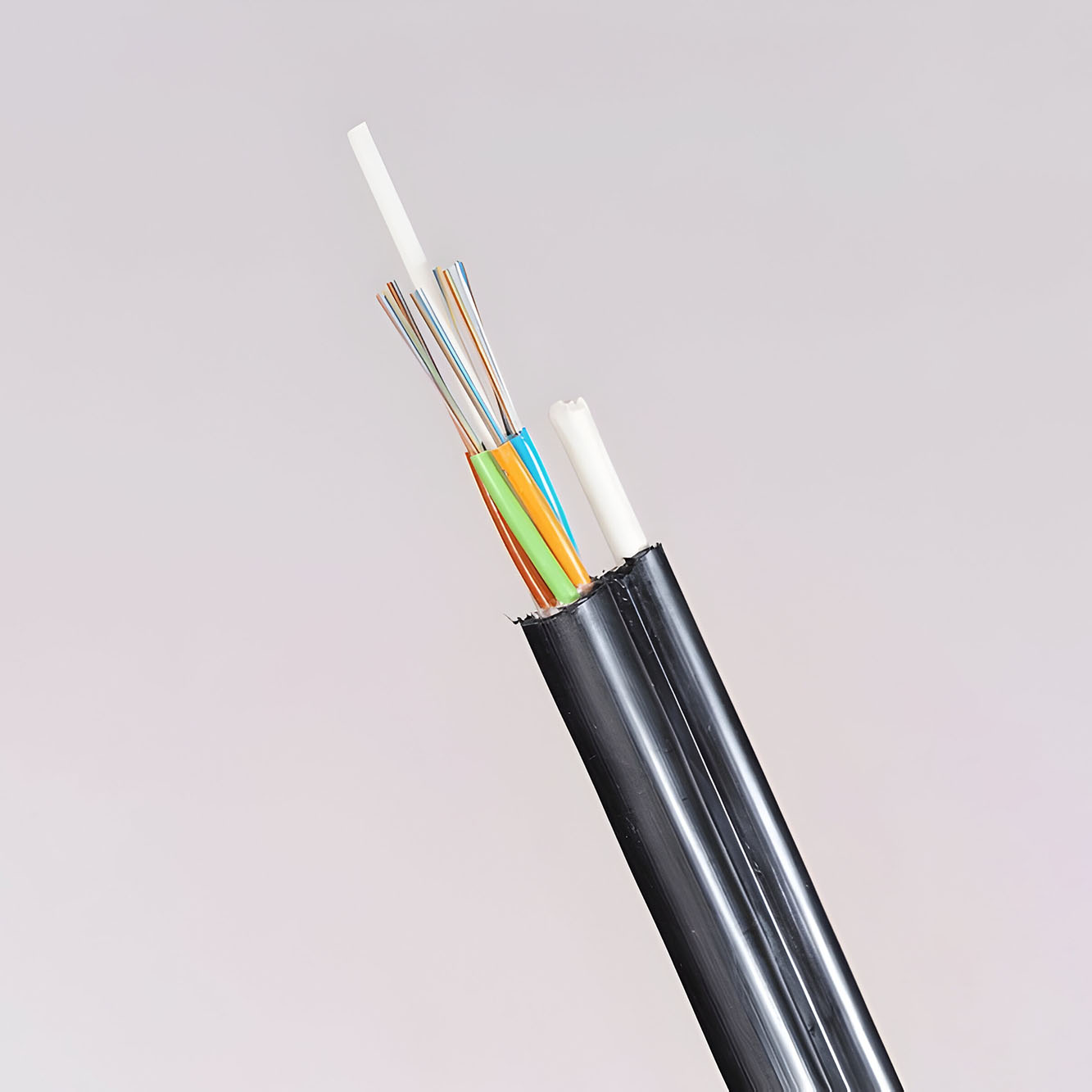

What Is Figure 8 Fiber Optic Cable?

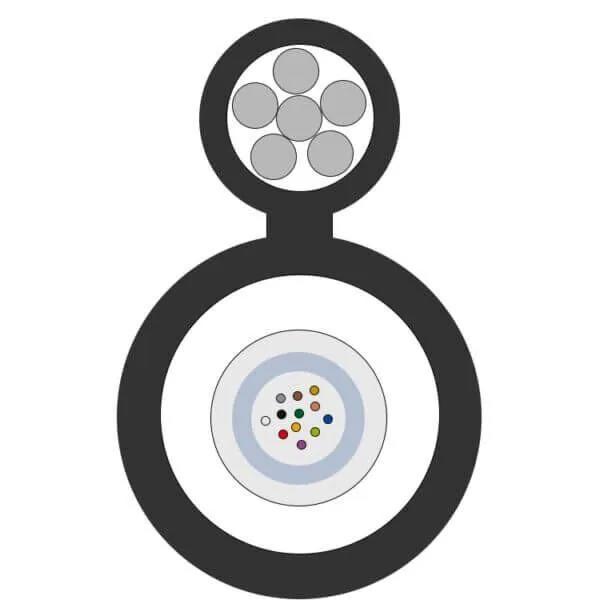

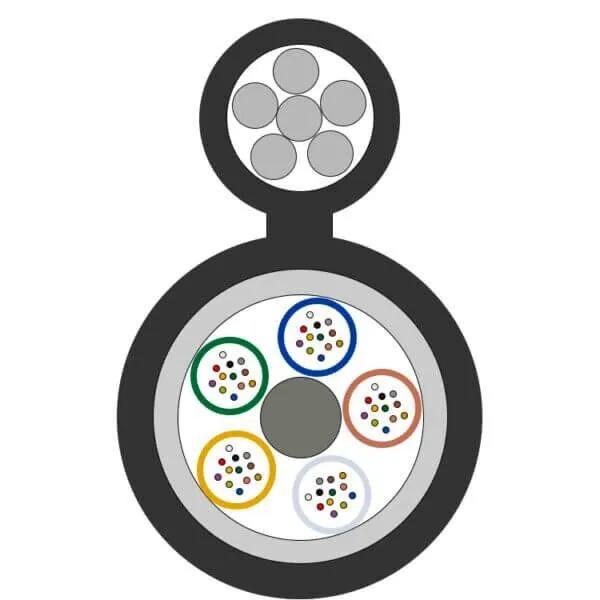

Figure 8 Fiber Optic Cable is a type of aerial self-supporting fiber optic cable designed with an integrated messenger wire. The cable gets its name because the cross-section resembles the number “8”, with the optical fiber unit and steel messenger wire arranged side by side and connected by a web.
Unlike traditional aerial fiber cables that require separate support wires, Figure 8 fiber optic cable combines the fiber cable and suspension wire into one product, making installation faster and reducing construction costs.
It is widely used in:
- FTTH (Fiber To The Home) networks
- Rural broadband deployment
- Telecom access networks
- CATV distribution systems
- Last-mile fiber optic connections
- Aerial communication networks
The main advantage of Figure 8 cable is its ability to be self-supported between poles, making it ideal for overhead installations.
Applications of Figure 8 Fiber Optic Cable
Between Buildings
Connect offices with Figure 8 fiber optic cable. ASU cable works well in city settings. Cables link structures, providing fast data. Spans can be short, maybe 50 meters, easy. You use fewer poles this close way. G657A1 fiber bends well, inside tight spaces.
The core count can be low, like 12. Jacket material might be PE, for protection. The cable carries voice, data and also video. Installation is quick between nearby buildings, secure. DEKAM provides custom lengths for you also.
Along Roads
Figure 8 fiber optic cables run beside highways. They follow the road, long distances covered. GYXTC8Y cable is designed for long spans. The steel wire adds needed extra support also. You might see spans of 100, 150 meters. Fiber types include G652D, for long reach.
Core counts go higher, up to 288. The cables withstand wind, also extreme temperatures. HDPE jackets resist damage from the sun. Cables connect towns, transmit large amounts data. DEKAM ships these globally, to 35+ countries.

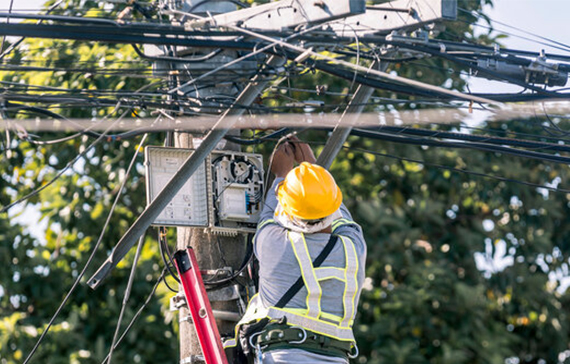

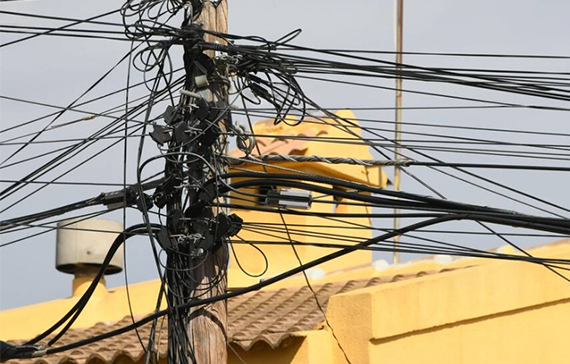

Up in the Air

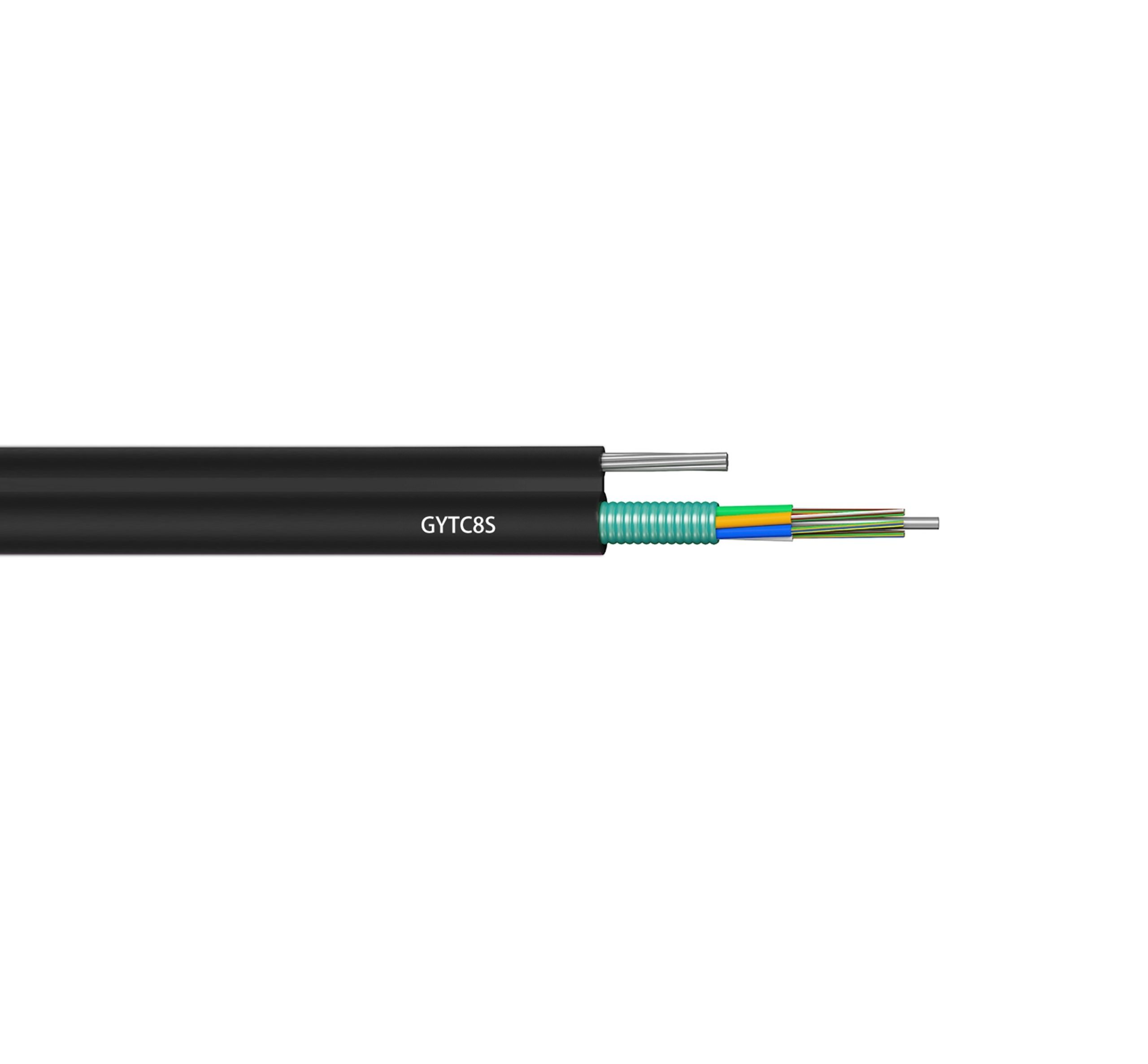

Poles hold Figure 8 fiber optic cable aloft. Cables hang, self-supporting, spanning gaps between poles. ADSS cable needs no extra support wires. GYXTC8S uses steel strength members, inside cable. You see these used in many aerial applications. Fiber counts vary widely, from 1 core.
The cables endure ice, rain, also the wind. Lengths can be 2km, 4km, even longer, up to 6km. Single-mode fiber, like OS2, is common here. The diameter depends on needed fiber count.
Figure 8 Fiber Optic Cable Specifications
| Specification | GYXTC8Y | GYXTC8S | GYFTY | ADSS | ASU | GYXTW |
| Tensile Strength (N) | 1200 N | 1500 N | 1000 N | 3000 N | 800 N | 1100 N |
| Crush Resistance (N/100mm) | 1000 N | 2200 N | 1000 N | 800 N | 600 N | 1000 N |
| Operating Temp (°C) | -40°C +70°C | -40°C +70°C | -40°C +70°C | -40°C +70°C | -20°C +60°C | -40°C +60°C |
| Fiber Count | 1-288 Core | 1-288 Core | 1-144 Core | 1-288 Core | 1-12 Core | 1-144 Core |
| Typical Span (m) | 100m, 150m | 50m, 100m | 80m | 100m+, 200m+ | 50m | 80m |
| Jacket Material | PE, HDPE | PE, HDPE | PE | PE, HDPE | PE | PE, HDPE |
| Standard | IEC 60794-1 | IEC 60794-1 | IEC 60794-1 | IEC 60794-1 | IEC 60794-1 | IEC 60794-1 |
Quality and Care for Figure 8 Fiber Optic Cable
YUNDA promises top-quality Figure 8 fiber optic cable. We are a genuine factory that manufactures cables directly. You can get free samples to test before. The minimum order quantity is flexible and accommodating.
Prices are affordable, as a Chinese manufacturer makes it. GYXTC8Y cable is water-resistant and for outside use. Aerial cables are for hanging lines mainly. The wires transmit high-speed signals reliably also. They use G657A2 fiber, a good quality choice.
YUNDA partners with trusted big brands such as Huawei. They work with China Mobile and Lenovo. You get professional service, guaranteed.
