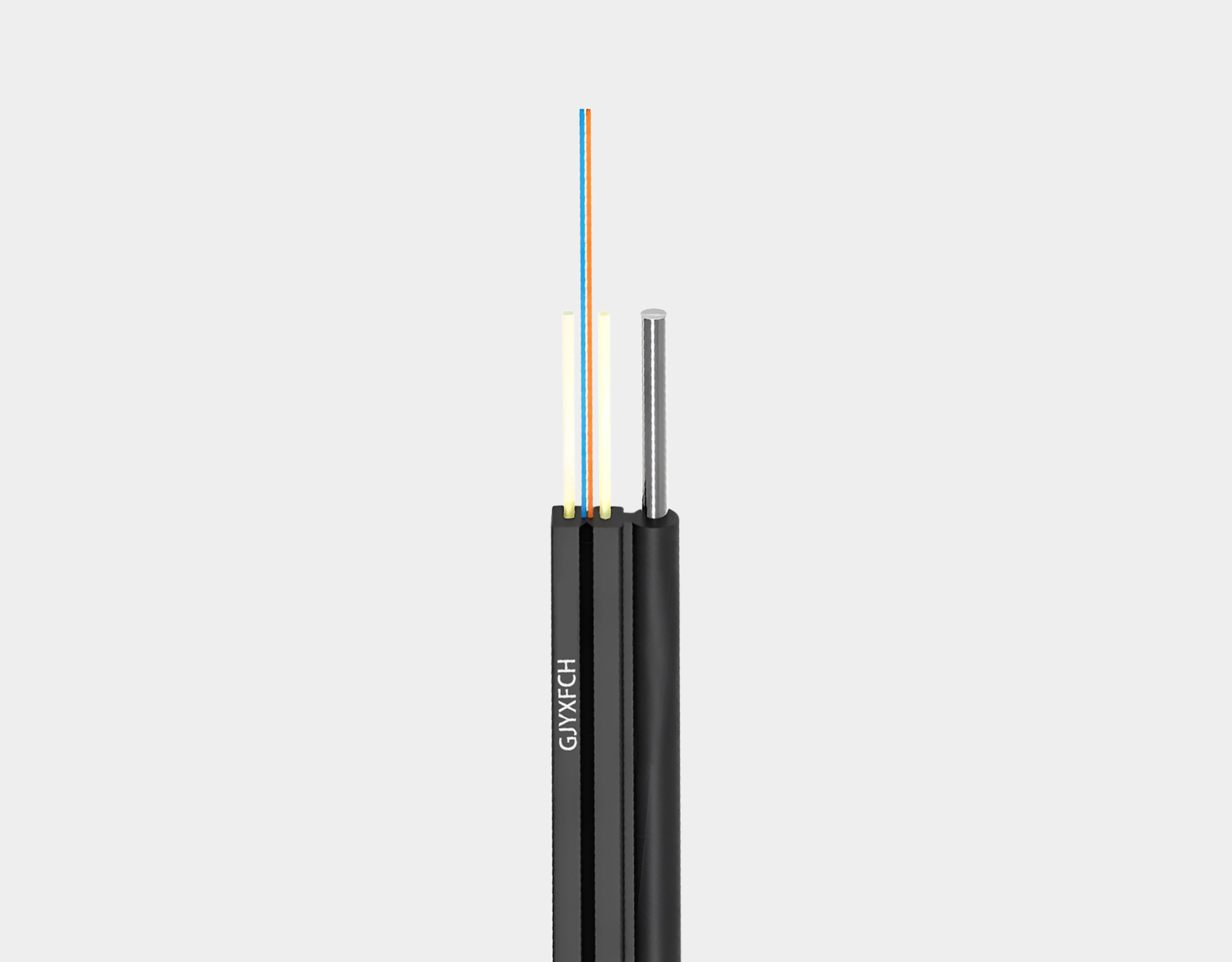

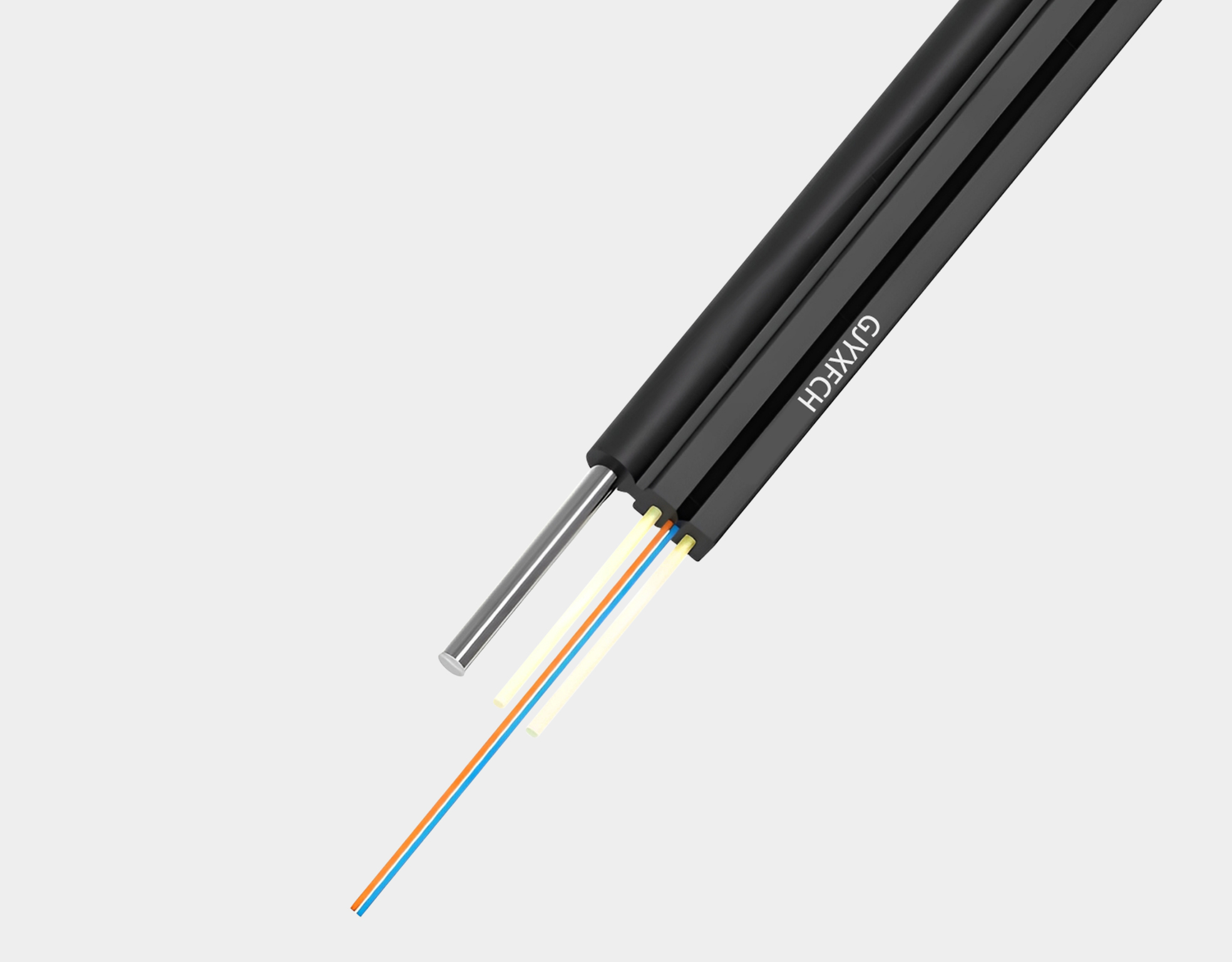

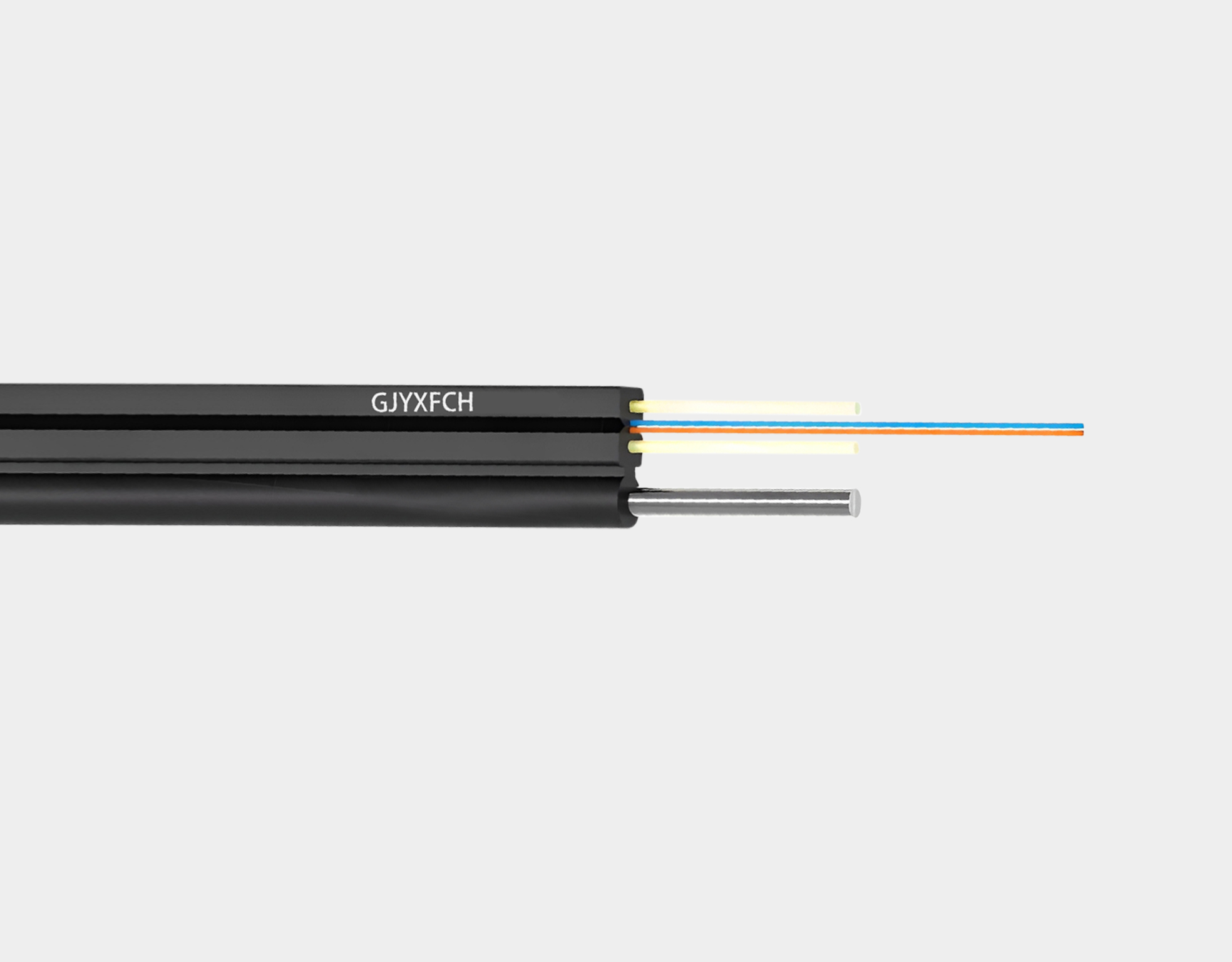

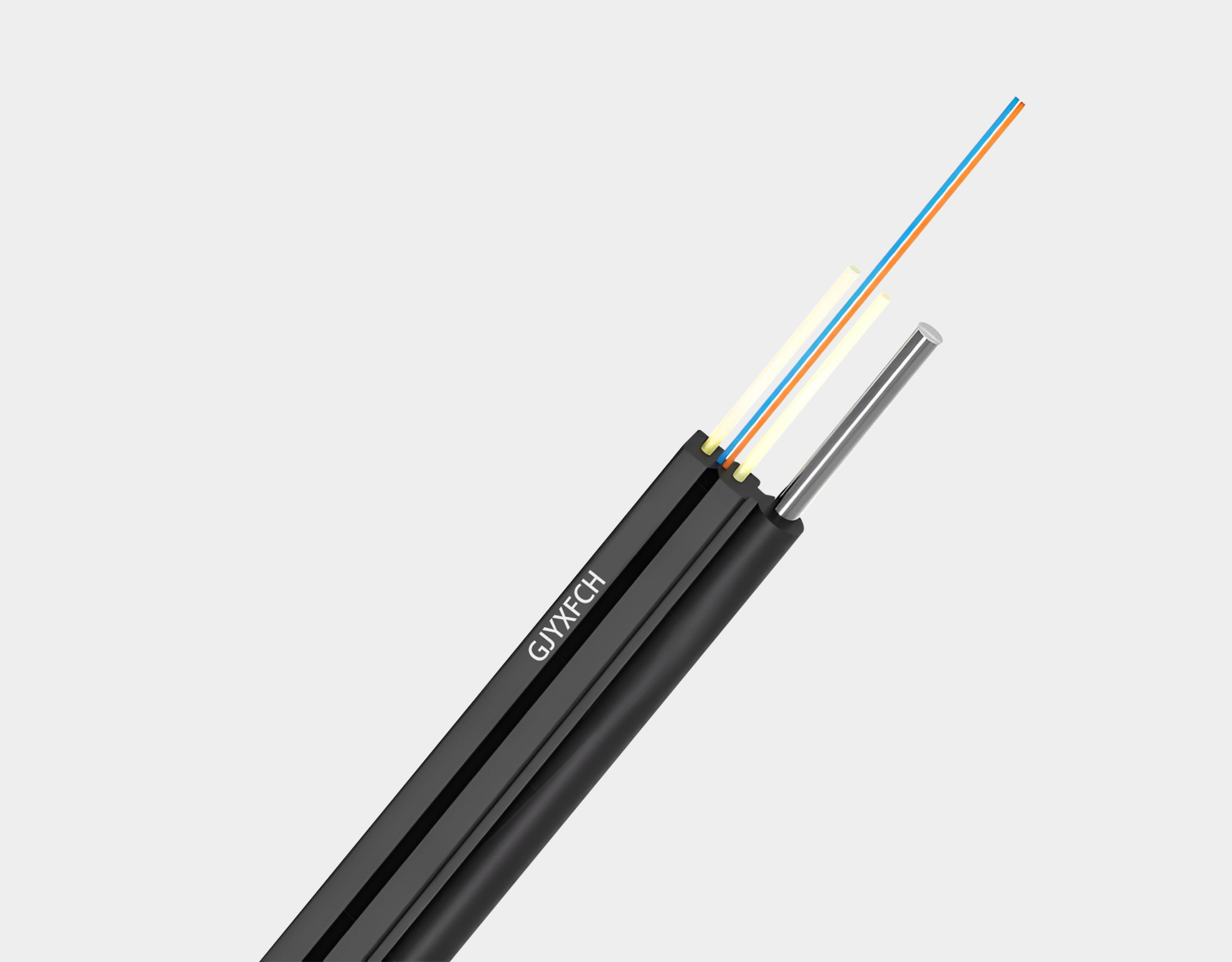

GJYXFCH Fiber Optic Cable
- The GJYXFCH cable greatly simplifies complex network setups. You achieve faster installation using its 6.0mm diameter. Fiber protection utilizes a 250µm coating.

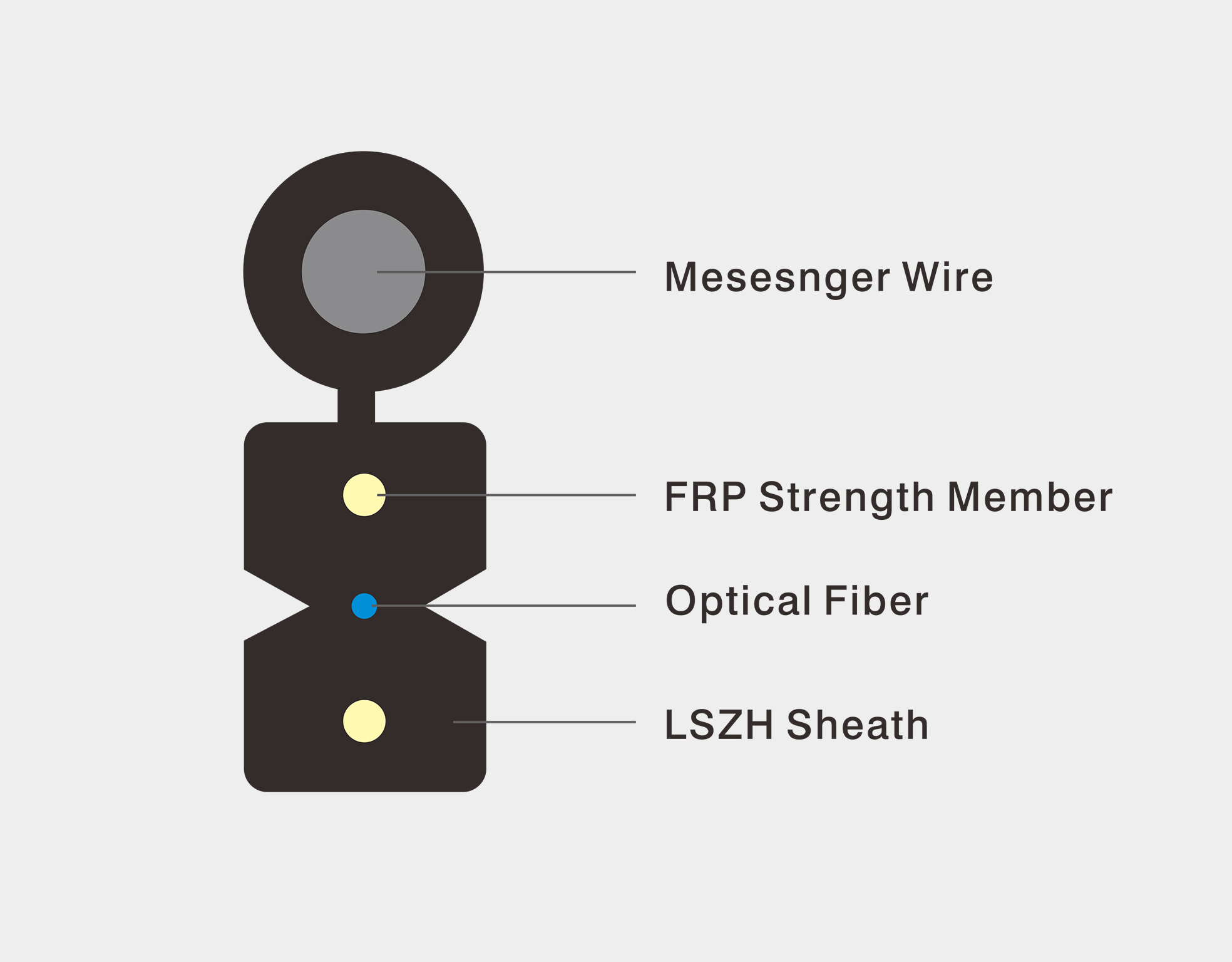

- The FRP strength member provides excellent tensile strength. That strength rating reaches 600N. Crush resistance measures 1000 N/100 mm. The LSZH jacket promotes fire safety.
- Operating temperatures span -20°C to +60°C. Employing G.657.A2 fibers ensures great bending flexibility. Minimum bending is 10D, dynamically.
GJYXFCH Fiber Optic Cable
Consider choosing GJYXFCH, featuring 12 distinct fibers. Signal loss measures ≤0.36 dB/km at 1310nm. Water tests show zero water after one day. Secure connections are achieved, holding well. Impact handling withstands 3 impacts, at 3.0 Nm. Duct installations are a frequent application.
Fiber counts range from 2 up to 24. The sheath presents black, resisting ultraviolet exposure. Numerous parameters define compressive behavior. Meeting guidelines is constantly maintained throughout.
GJYXFCH Fiber Optic Cable Specifications
| Parameter | Core Type | Outer Sheath | Strength Member | Bending Radius | Crush Load | Temperature Range |
| Fiber Standard | G.657.A2 | LSZH | Dual FRP | 10D Dynamic | 1000 N/100mm | -20°C to +60°C |
| Attenuation (dB/km) | ≤0.36 (1310nm) | Black, UV | 0.45 mm | 20D Static | 2200 N/100mm | -40°C to +70°C |
| Fiber Count | 2-24 core | PE option | Steel Wire | 7.5 mm | 300 N/10cm | -10°C to +50°C |
| Cable Diameter (mm) | 2.0 x 3.0 | Flame retard | 1.0 mm | 15 mm | 2000 N | -40°C to +85°C |
| Weight (kg/km) | ~30 | ≤ 80 Shore D | 600N Pulling | 30D Long Term | 100 N | -20°C up +60° |
| Water Blocking | Dry Yarn | Non-Cracking | 800N Tensile | 15D Short Term | 2500N | -55°C+ 85° |
| Return loss | ≥60 dB | UV safe | 1.2 mm | 5 mm | 500 N | -30°C up +65° |
Quality and Your Peace of Mind!

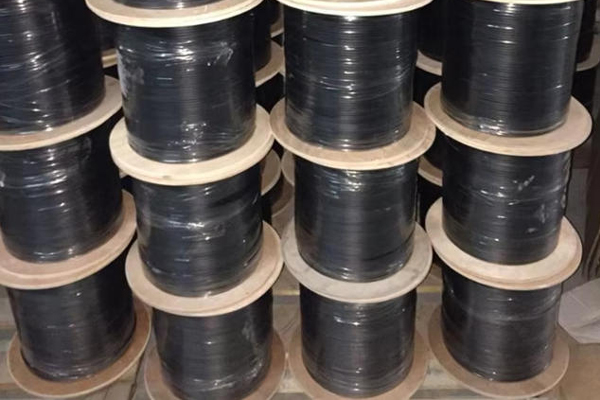

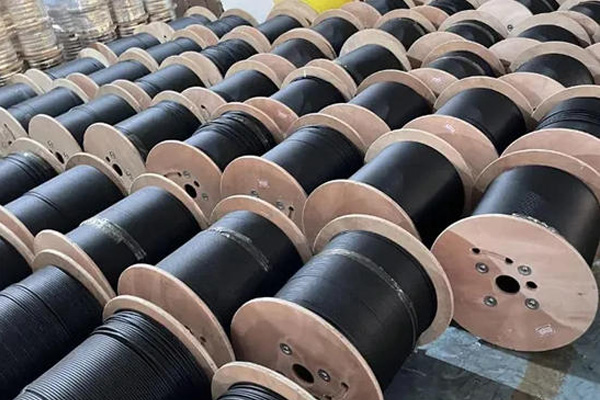

YUNDA provides you with exceptional fiber optic cabling. Stringent testing confirms GJYXFCH performance. Each spool, therefore, passes OTDR checking.
A 15-year period defines component’s assurance. Long-term reliability, because of the guarantee, results. Achieving RoHS compliance happens. Cables resist temperatures from -40°C upward. Meeting IEC 60794 standards is assured. Always rely on YUNDA.
Related Products
Share GJYXFCH Fiber Optic Cable to Your Social Media
Ultimate FAQ Guide to Fiber Optic Cable
What types of fiber optic cables do you manufacture?
Our factory produces a wide range of fiber optic cables for different applications:
Outdoor Fiber Optic Cable
- ADSS Fiber Optic Cable
- OPGW Fiber Optic Cable
- GYTA Fiber Optic Cable
- GYTS Fiber Optic Cable
- GYXTW Fiber Optic Cable
- Armored Fiber Optic Cable
- Direct Burial Fiber Cable
- Duct Fiber Optic Cable
- Aerial Fiber Optic Cable
FTTH Fiber Optic Cable
- FTTH Drop Cable
- GJYXCH
- GJYXFCH
- Indoor Fiber Cable
Special Fiber Optic Cable
- Submarine Fiber Optic Cable
- ASU Fiber Optic Cable
- Hybrid Fiber Cable
- Air Blown Fiber Cable
We can provide fiber optic cable solutions for telecom operators, ISPs, contractors, distributors, and government projects.
Where is your fiber optic cable factory located?
Our fiber optic cable manufacturing facility is located in China, with modern production lines and complete testing equipment.
The factory includes:
- Fiber drawing and coloring equipment
- Cable extrusion production lines
- SZ stranding machines
- Armoring production lines
- Optical performance testing equipment
- Mechanical performance testing equipment
We have the ability to produce large-volume orders while maintaining consistent quality.
What is your monthly production capacity?
Our factory has strong production capacity to support both small and large projects.
Typical production capacity:
- ADSS Cable: thousands of kilometers per month
- GYTA/GYTS Cable: large-scale continuous production
- FTTH Drop Cable: high-speed mass production
For large projects, we can arrange dedicated production schedules to ensure stable delivery.
Can you provide customized fiber optic cables?
Yes. We provide OEM and ODM customization services according to customer requirements.
Customization options include:
- Fiber count (2 cores, 4 cores, 12 cores, 24 cores, 48 cores, 96 cores, 144 cores, etc.)
- Fiber type (G652D, G657A1, G657A2, OM1, OM2, OM3, OM4)
- Cable structure
- Jacket material
- Cable color
- Printing information
- Reel size
- Packaging requirements
Our engineering team can recommend the most suitable cable design based on your installation environment.
What fiber types do you use?
We mainly use high-quality optical fibers from reliable suppliers.
Available fiber types:
Single Mode Fiber
- G652D
- G657A1
- G657A2
Multimode Fiber
- OM1
- OM2
- OM3
- OM4
G652D is commonly used for backbone networks, while G657A1/A2 is widely used for FTTH applications because of its excellent bending performance.
What standards do your fiber optic cables meet?
Our fiber optic cables comply with international standards, including:
- IEC standards
- ITU-T recommendations
- RoHS requirements
- ISO quality management standards
Different cable types can meet specific requirements such as:
- IEC 60794 Fiber Optic Cable Standard
- ITU-T G.652/G.657 Fiber Standard
- ASTM and customer-specific requirements
How do you guarantee fiber optic cable quality?
Quality control is one of our factory priorities.
Each production stage is strictly inspected:
Raw Material Inspection
- Optical fiber quality
- Strength member
- Jelly compound
- HDPE jacket material
Production Testing
- Fiber attenuation testing
- Tensile strength testing
- Crush resistance testing
- Temperature cycling testing
Final Inspection
- Optical performance test
- Appearance inspection
- Length verification
- Packaging inspection
Every cable shipment is tested before delivery.
What testing equipment do you have?
Our factory uses professional testing equipment, including:
- OTDR testing equipment
- Tensile testing machines
- Crush resistance testers
- Environmental testing chambers
- Fiber attenuation testers
- Diameter measurement equipment
These tests ensure cable reliability during installation and long-term operation.
What is the minimum order quantity (MOQ)?
MOQ depends on the cable type and specifications.
Typical MOQ:
- Standard fiber optic cable: flexible MOQ
- Customized cable: depends on production requirements
- Large projects: negotiated according to project volume
Please contact our sales team for a customized quotation.
