GJYXCH Fiber Optic Cable

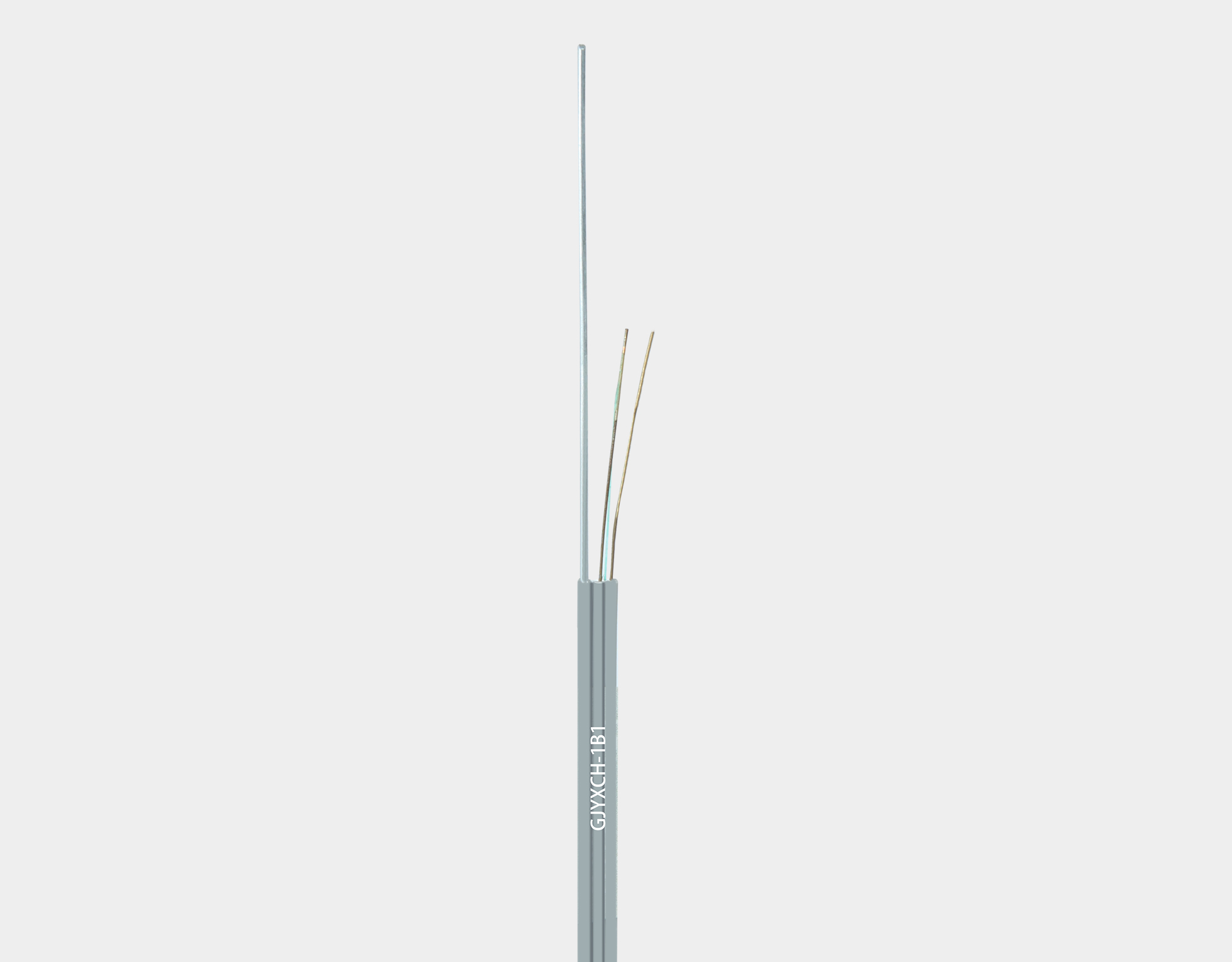

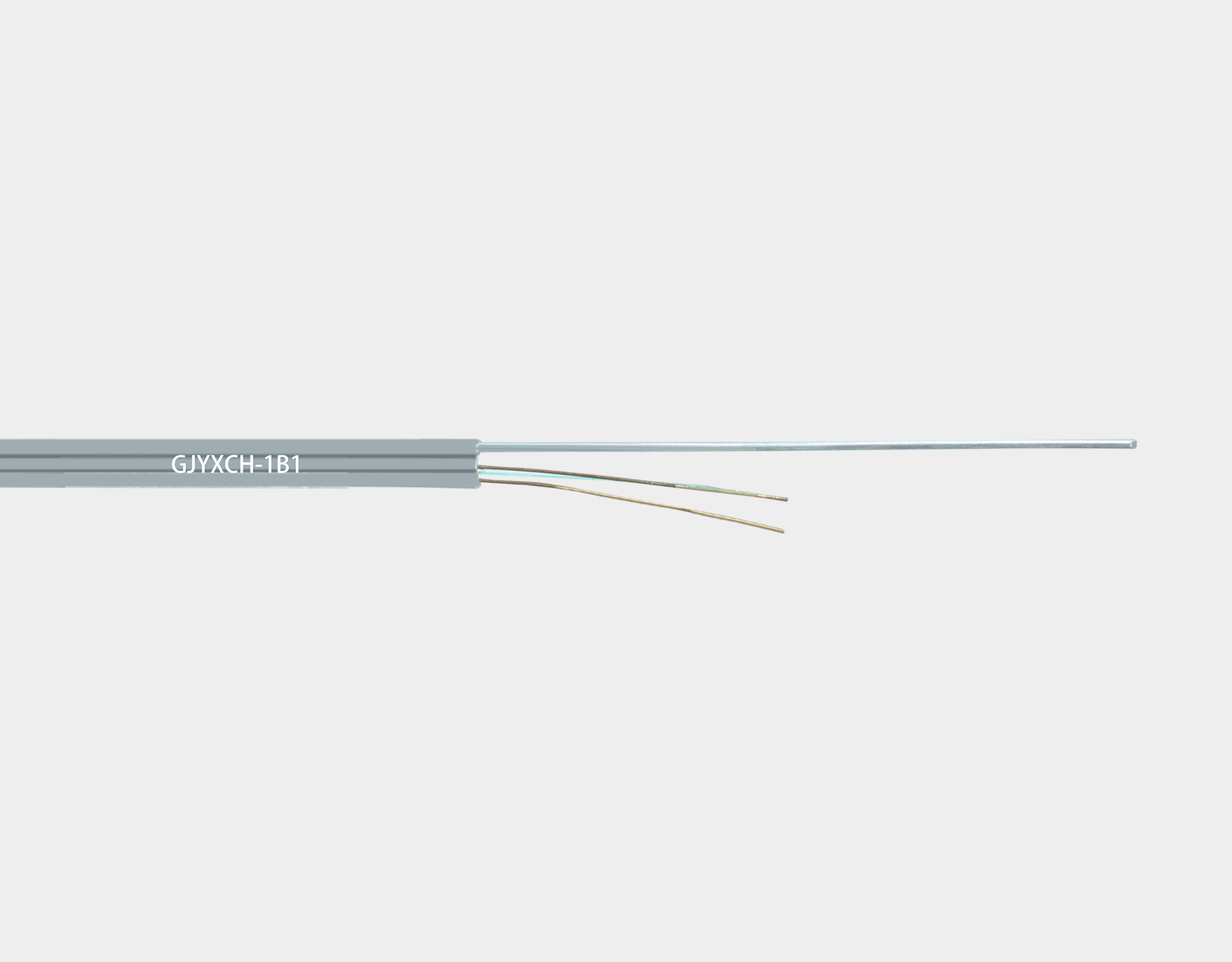

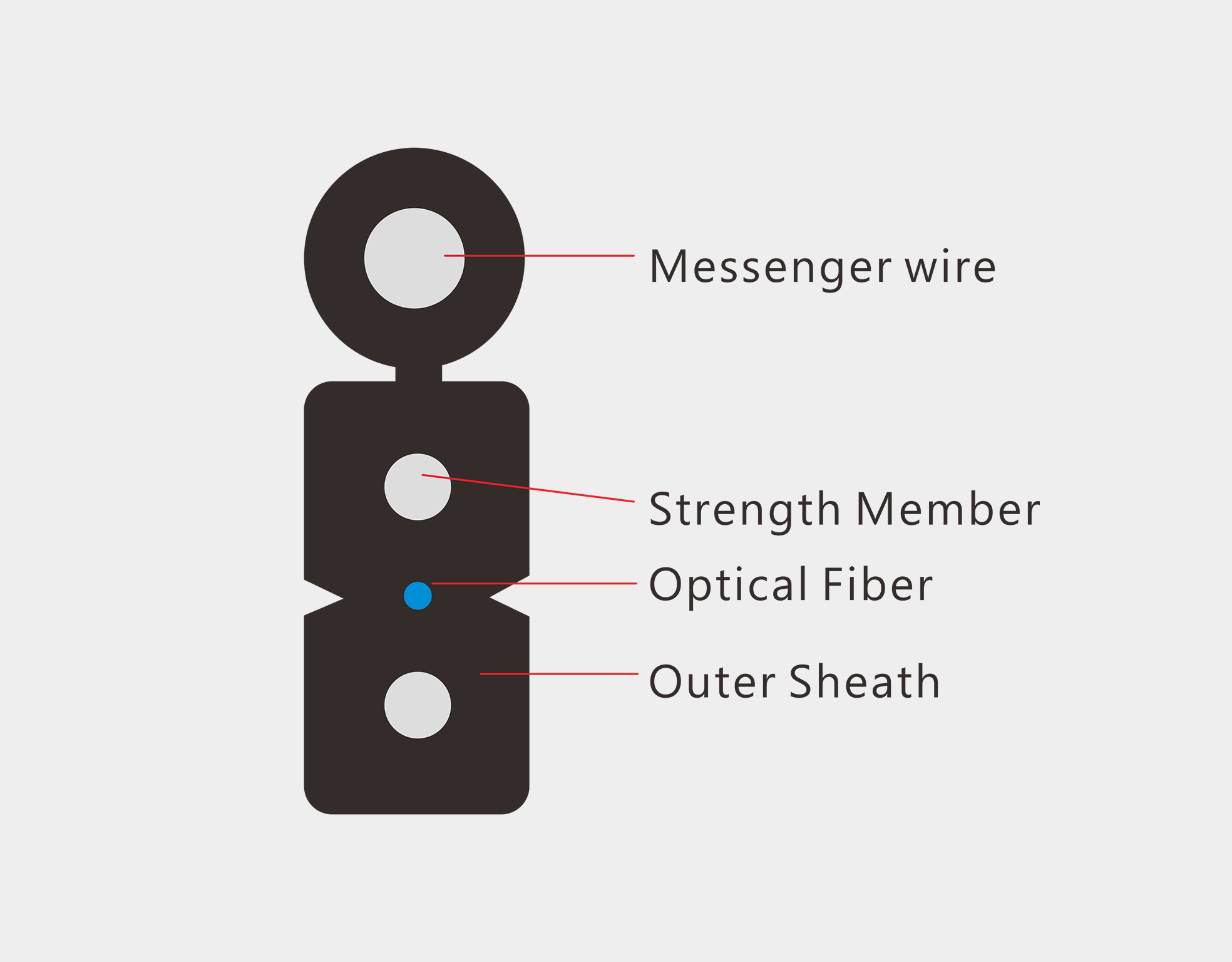

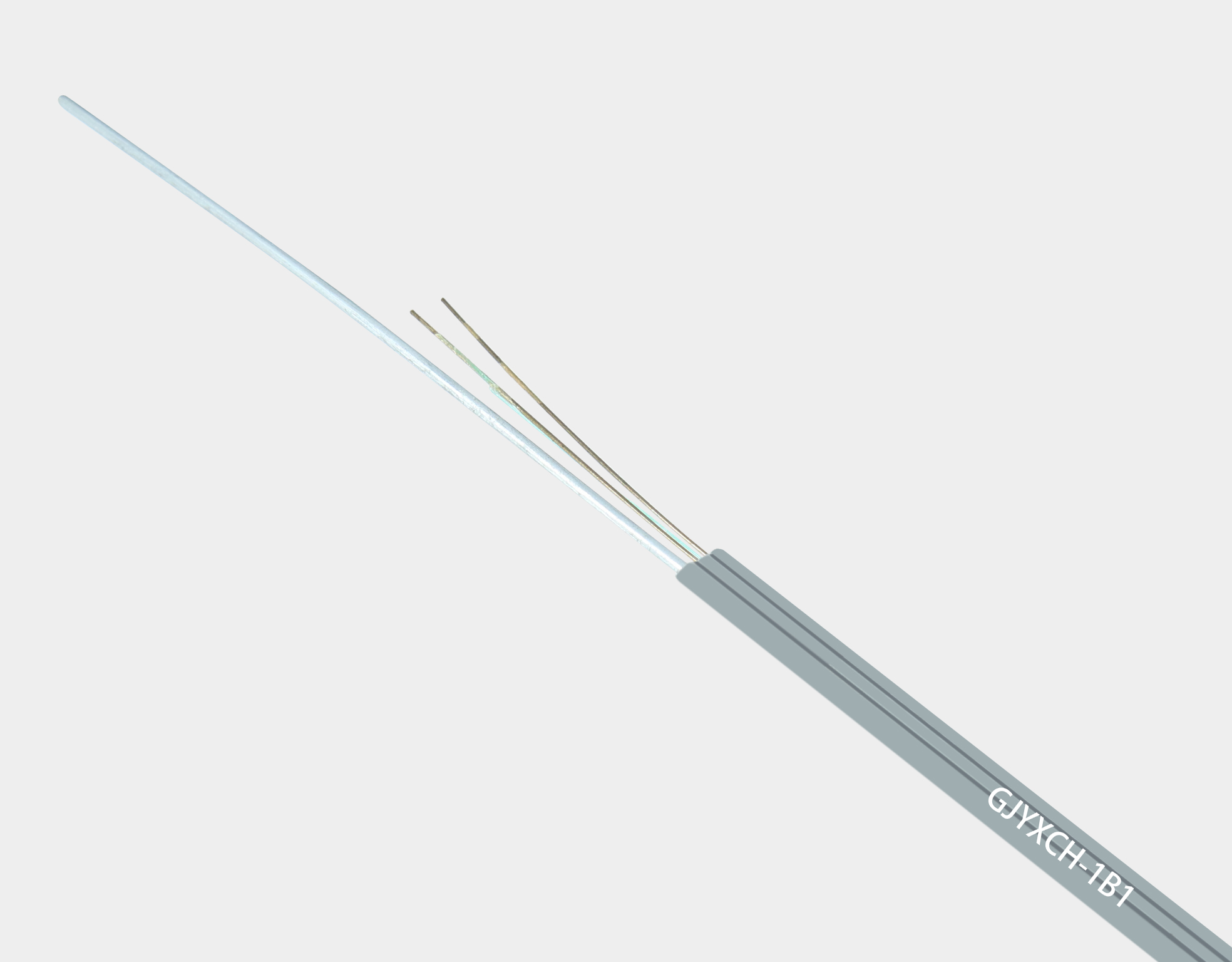

- The core of the GJYXCH cable structure features a centrally located optical fiber unit, flanked by dual parallel Fiber Reinforced Plastic (FRP) elements on either side. To enhance mechanical strength, a steel wire reinforcement is incorporated into the design. The entire assembly is then encased in a protective outer layer, utilizing either black or colored Low Smoke Zero Halogen (LSZH) material for the final sheathing. Fiber bend radius remains above 30mm. Whereas, tensile strength reaches 800 N. Cable diameter support is 8-16 mm.
GJYXCH Fiber Optic Cable
The GJYXCH cable features a central strength member. You get options between 250µm or 900µm tight buffer fibers. It has a diameter ranging from 2.0mm to 3.0mm. Outer jacket options are PVC, or LSZH. Find tensile strengths to reach 600N. Consider crush resistance reaching up to 1000N/100mm.
The G.657A fiber minimizes bending loss. The operating temperature range spans from -20°C up to +60°C whereas storage occurs between -40°C and +70°C. Sheath material contains UV resistance additives.
Specially designed bend-insensitive fiber delivers high bandwidth and superior transmission quality. Dual FRP reinforcements enhance crush resistance for fiber protection, while a steel wire boosts tensile strength. The lightweight, practical design features an innovative groove pattern for easy stripping, splicing, and simplified installation and maintenance.
GJYXCH Fiber Optic Cable Specifications
| Parameter | Central Loose Tube | Stranded Loose Tube | Tight Buffered | Micro-Module | Ribbon Fiber | All-Dielectric |
| Fiber Count | 2-12 Fibers | 2-288 Fibers | 1-24 Fibers | 2-144 Fibers | 4-864 Fibers | 2-216 Fibers |
| Attenuation (1310nm) | ≤ 0.35 dB/km | ≤ 0.36 dB/km | ≤ 0.40 dB/km | ≤ 0.38 dB/km | ≤ 0.35 dB/km | ≤ 0.36 dB/km |
| Attenuation (1550nm) | ≤ 0.22 dB/km | ≤ 0.23 dB/km | ≤ 0.25 dB/km | ≤ 0.24 dB/km | ≤ 0.22 dB/km | ≤ 0.23 dB/km |
| Tensile Strength | 600 N | 1000-3000 N | 400 N | 800 N | 1500 N | 1000-2500 N |
| Crush Resistance | 1000 N/100mm | 2200 N/100mm | 500 N/100mm | 1500 N/100mm | 2000 N/100mm | 2000 N/100mm |
| Bend Radius (mm) | 20D | 10-20D | 15D | 10-15D | 25D | 10-20D |
Advanced GJYXCH
Delve into the top-performance network infrastructure world. The GJYXCH’s jacket will increase safety. You choose lengths from 1km- 4 km spools. Handling is easy, weighs less than 9 kg/km.
Plus, water-blocking elements enhance protection greatly. It supports Ethernet, and 10-Gigabit versions. Buffer tubes can protect during the placements. Tensile elements will provide strength during setup.
Experience low PMD, below 0.2 ps/sqrt(km). The coating makes easy, excellent, fiber stripping.
GJYXCH has smaller design diameter. There is density for crowded ducts. Benefit from 2.0mm units; quick termination. The cable provides great macro-bending action. Mode field diameter is near 9.2µm. Finally, wavelengths contain 1310nm, 1550nm, 1625nm.
