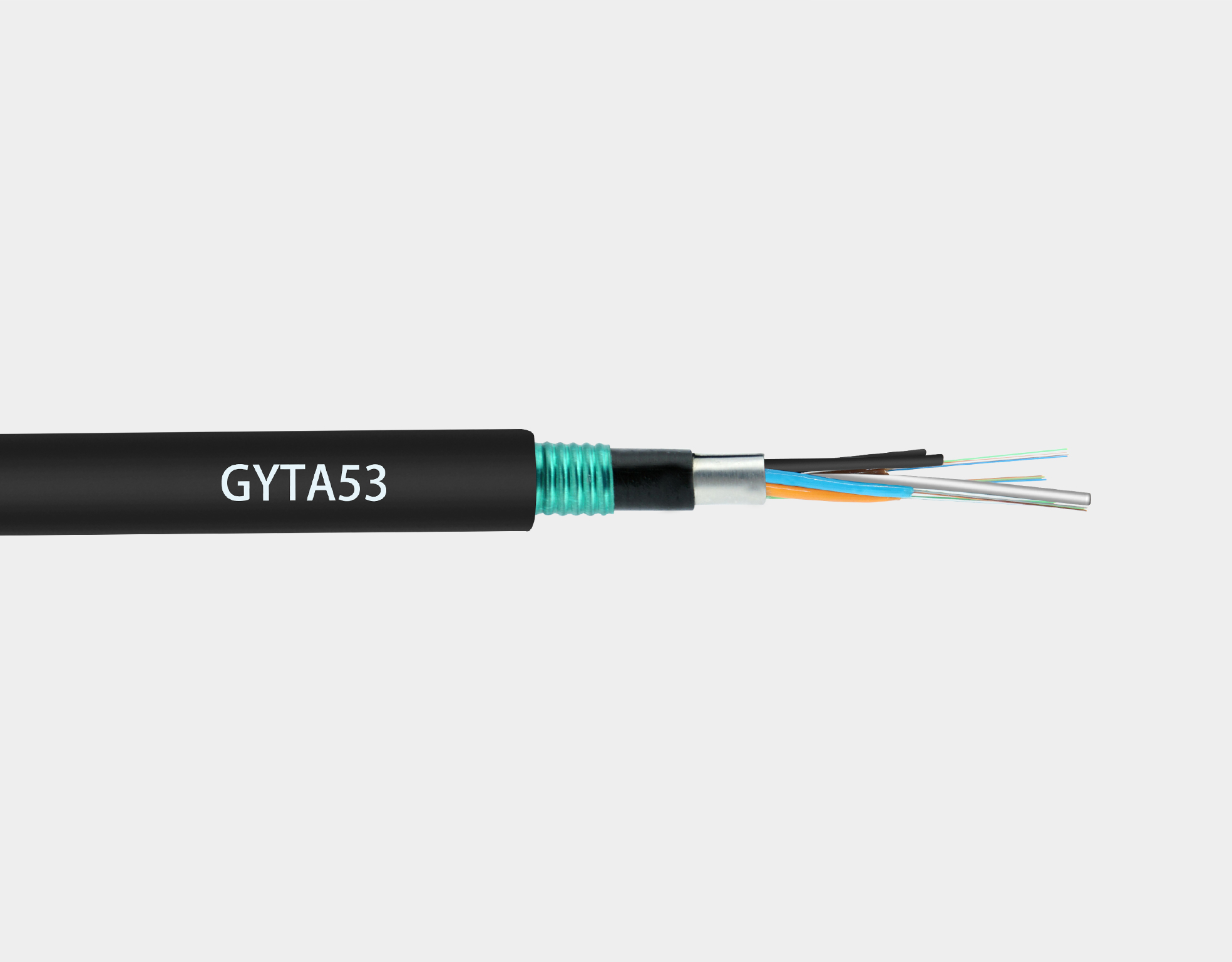

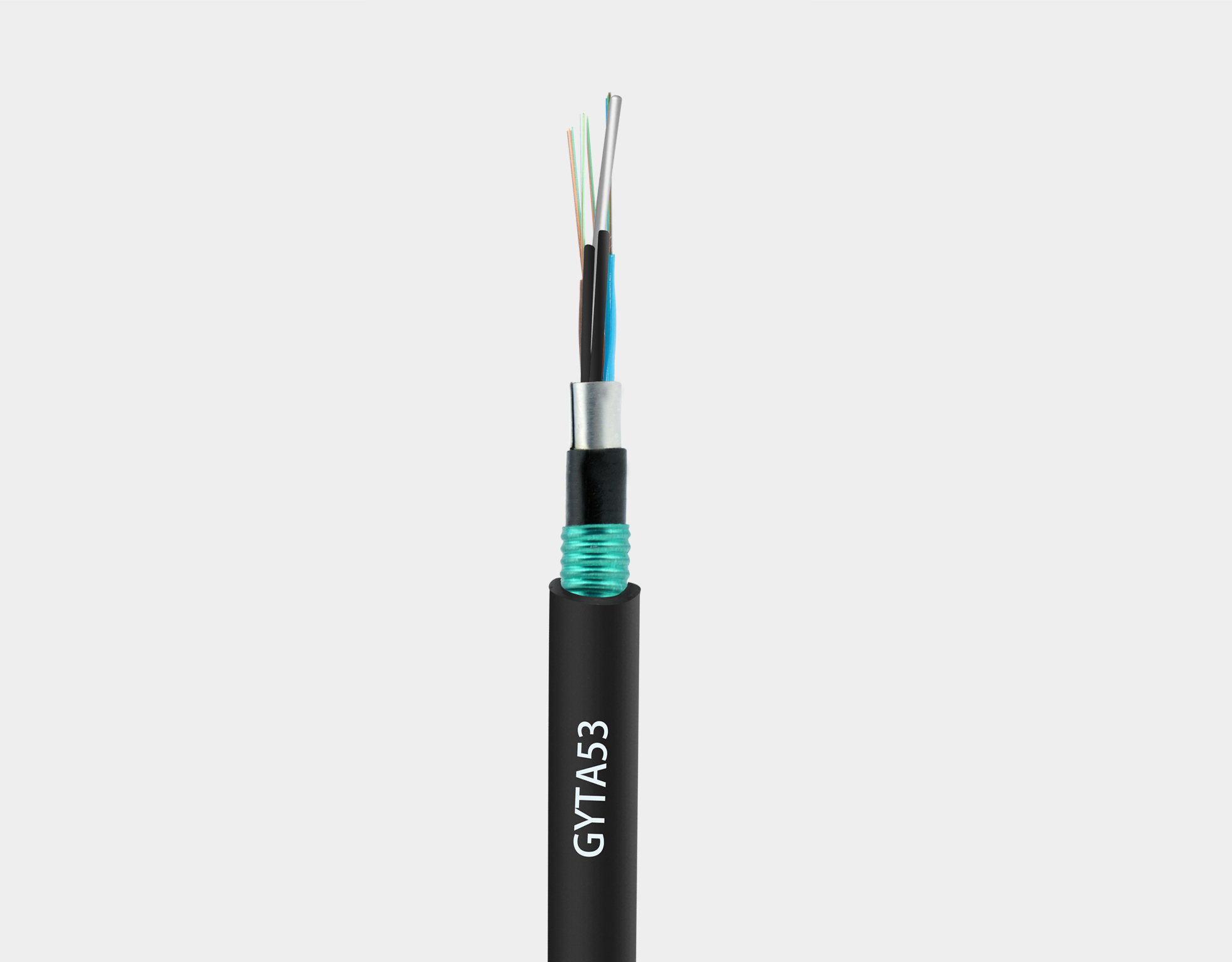

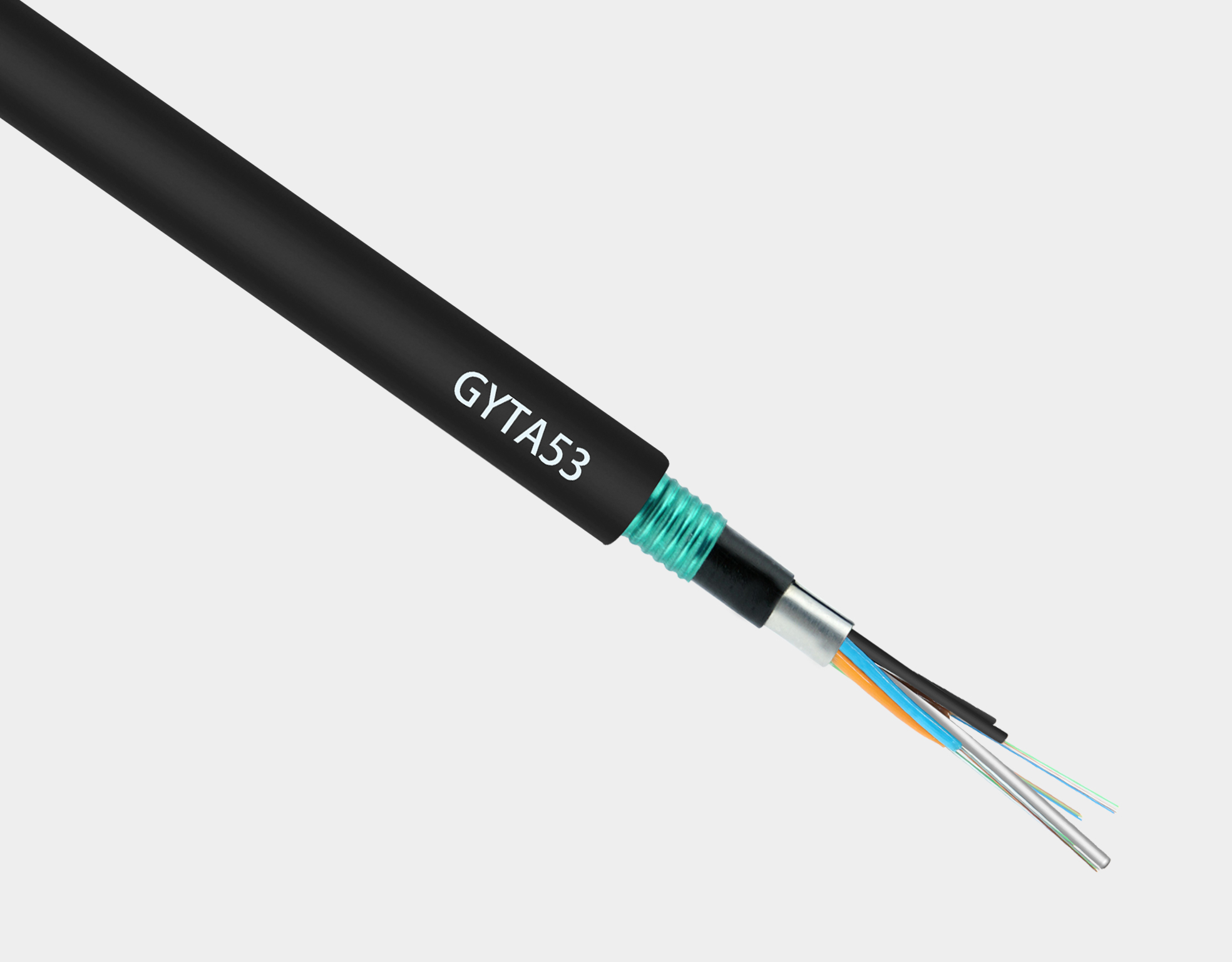

GYTA53 Fiber Optic Cable
- Double protection structure: aluminum tape waterproof layer + steel tape mechanical armor
- Outstanding crush resistance, impact resistance and rodent-proof ability
- Superior moisture sealing performance compared with GYTA / GYTS
- Stable fiber excess length, excellent low & high temperature adaptability (-40℃ ~ +65℃)
- Suitable for complex underground environments
- Anti-ultraviolet outer sheath
What is GYTA53 Fiber Optic Cable?

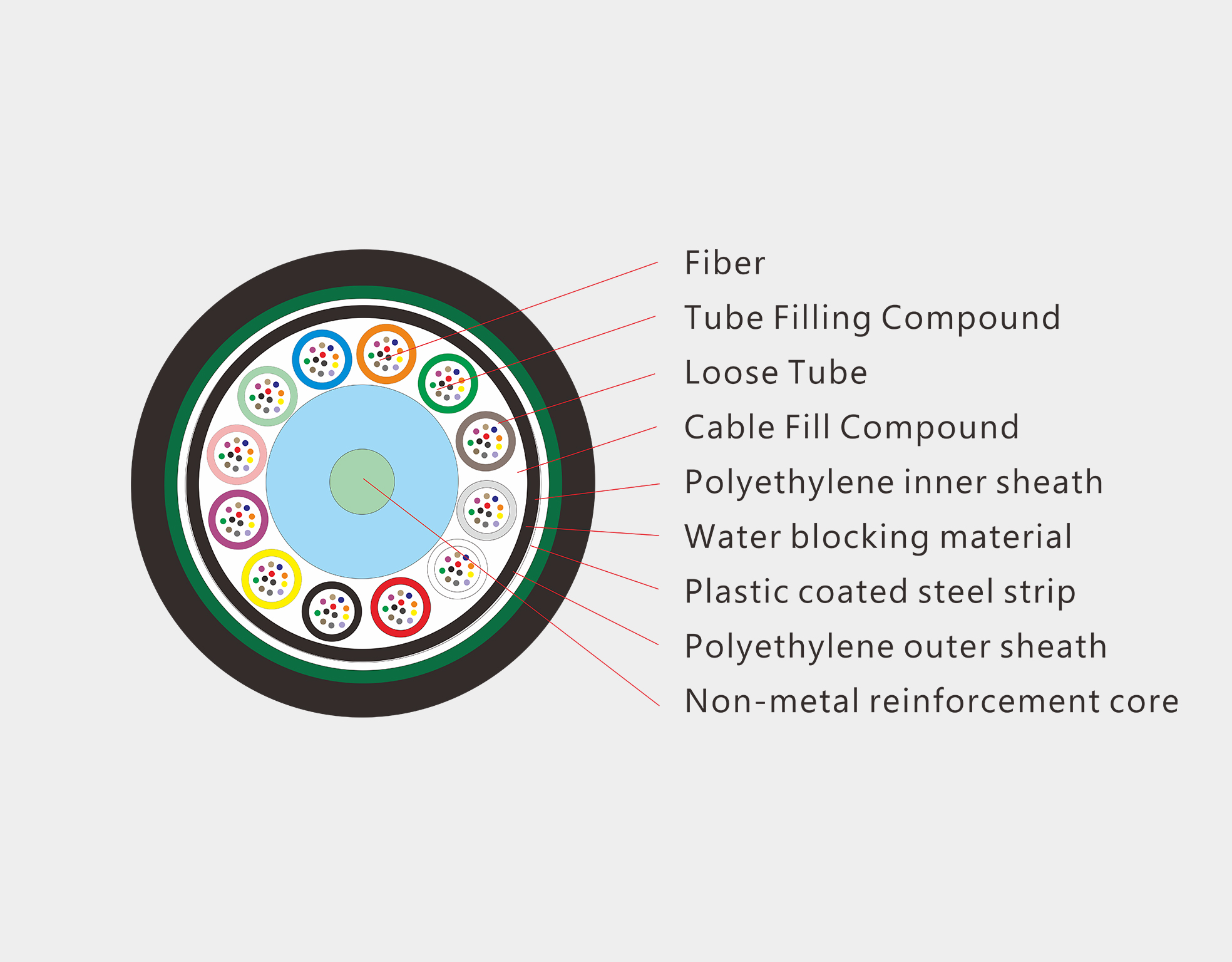

GYTA53 fiber optic cable is double sheath steel tape armored direct buried optical cable. Built with APL aluminum tape moisture barrier, inner PE sheath, corrugated steel tape armor and outer PE jacket. It features strong anti-pressure, anti-impact and anti-rodent performance. Available 2–288 cores with G.652D/G.657A2 fiber. Widely used for direct burial projects, municipal communication backbone and underground metropolitan network.
GYTA53 Cable Working

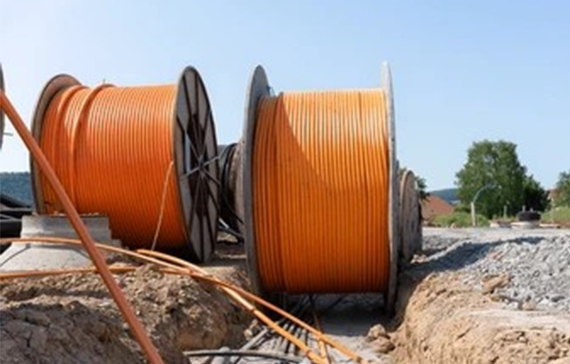

Underground Pathways
Installing GYTA53 underground protects from the damage. Ducts, with diameters exceeding 50mm, provide housing, simplifying future maintenance. The cable is appropriate for direct burial applications. Features aramid yarn for increased tensile strength, exceeding 1000N.
It uses a double-layer polyethylene (PE) sheath. The inner sheath measure is1.5 mm. Outer sheath measures 2.0 mm. The cable includes 12 color-coded fibers, according to the TIA/EIA-598-C standard. Minimum bending radius is 200 mm.
Helping Businesses
Businesses choose GYTA53 for high-speed data transfer. The cable gives a strong, reliable connection. It handles many high-bandwidth applications in corporate settings. Find it supporting video conferencing, and cloud computing, with minimal packet loss. Its design allows for up to 432 fibers.
The cable’s water resistance value is IPX8, tested at a depth of 1 meter for 24 hours. Operating temperatures range from -40°C to 70°C. It weighs about 23 kg, per hundred meters.
Rural Areas Connection
The durable gyta53 fiber cable ensures connectivity over long distances. GYTA53 brings networks to remote regions. Now, smaller towns get connectivity benefits, including access to broadband internet. The cable construction ensures long-term operational performance, with a projected lifespan of over 30 years. Installation methods are duct, aerial, and direct burial.
Maximum pulling tension reaches to 2700 N. Features impact resistance value of 25 J. Cable includes a ripcord, made of nylon, for easy access. The outer jacket contains UV protection additives, stabilizing against degradation. The cable diameter is around 15.3mm.
GYTA53 Fiber Optic Cable Specifications
| Specification | Central Loose Tube | Stranded Loose Tube | Double Layer | Armoring Type | Fiber Type | Jacket Material |
| Fiber Count | 2-144 Fibers | Up to 288 Fibers | Up to 432 Fibers | Corrugated Steel Tape | G.652D, G.657A1 | MDPE, HDPE |
| Tensile Strength | 1000N | 2700N | 3000N | Double Layered | Single Mode | UV Resistant |
| Crush Resistance | 2200N/10cm | 3000N/10cm | 4400N/10cm | 0.15mm Thickness | Low Water Peak | Black PE |
| Operating Temp. | -40°C to +60°C | -40°C to +70°C | -40°C to +70°C | Helically Applied | Bend Insensitive | 2.0mm Thickness |
| Bending Radius | 20D | 15D-20D | 25 D | Longitudinal Steel | 9/125µm | LSZH Optional |
| Water Blocking | Jelly Filled | Water Swelling Yarn | Dry Core Design | Fully Filled | 288f/tube | Anti-Rodent |
| Cable Diameter | 8-15mm | 12- 20mm | 14-23mm | Steel Wires | ITU-T G.65x | Thixotropic Jelly Compound |
Protecting Your Investment!
GYTA53 is an investment in a durable network. Selecting the network reduces your future operating expenses. Proper maintenance techniques, including regular inspections, help businesses preserve the best possible product quality. The durability feature helps stretch equipment lifespan which reduces the need for replacements and thereby saves money.
The network experiences reduced repair costs. The robust gyta53 optical fiber cable has an extended service life. Due to its long lifespan the cable provides financial gains which lead to reduced expenses. Components with superior quality, lead to dependable service operation.
The number of interruptions that cause damage decreases maintenance costs. The tubes within each cable contain up to twelve fibers. Storage temperature spans from -40°C to +70°C. Installation temperature ranges from -30°C to +60°C. Cable weight is around 205 kg/km. The product shows no water uptake properties, ensuring long-term reliability.
